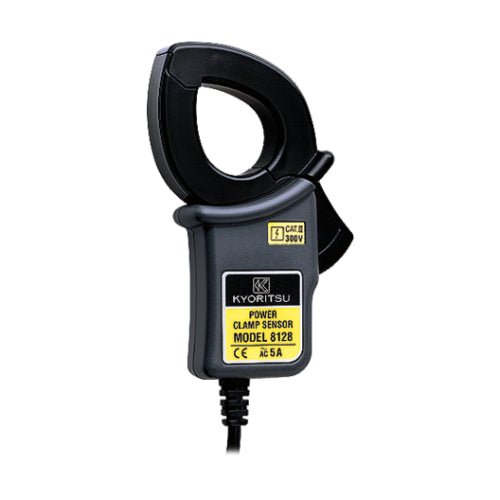

KYORITSU MODEL 8128 Load Current Clamp Sensor

Professional electrical measuring instrument from KYORITSU Japan. The specifications below are based on the manufacturer's 2026 general catalog.

Key Features

Ø24mm

Specifications

Conductor size	Ø24mm
Rated current	AC 5A (Max.50A)
Output voltage	AC 50mV/5A [Max.500mV/50A] (AC 10mV/A)
Accuracy	±0.5%rdg±0.1mV (50/60Hz) ±1.0%rdg±0.2mV (40Hz to 1kHz)
Phase shift	within ±2.0º (45 to 65Hz)
Cable length	Approx. 3m
Output connector	MINI DIN 6PIN
Output impedance	Approx. 20Ω
Applicable standards	IEC 61010-1 , IEC 61010-2-032:2002 CAT III 300V pollution degree 2 , IEC 61326
Operating temperature and humidity range	0 to 50˚C , relative humidity 85% or less (no condensation)
Dimension	100(L) x 60(W) x 26(D) mm
Weight	Approx. 160g
Accessories	9095 (Carrying case) Instruction manual , Cable marker
Optional Accessories	7146 (Banana Ø4 adjuster plug) 7185 (Extension Cable)

Catalog reference: KYORITSU General Catalog 2026, page 66,68,71,72,74～76

Condition: New

Specifications and included accessories may be updated by the manufacturer. Please confirm compatibility and the required measurement category before use.
